EV Charger
Installation
Christchurch
A premium domestic EV charger installation for a client in Christchurch, BH23 who needed a reliable home charging setup for regular electric vehicle use. We fitted a smart Hypervolt Home Pro charger with tidy wall mounting and clean, secure black conduit containment.
Project Overview & Needs
What the Client Needed
The client wanted a dedicated EV charging point at home rather than relying on public chargers or a standard socket. They needed a tidy installation that would work well with the layout of the driveway and keep the charging cable easy to reach.
The property had a suitable exterior brick wall close to the driveway, making it a practical position for a wall-mounted charger. SC Electric planned the installation to keep the charger easy to access while keeping the visible cabling exceptionally neat, integrated, and secure.
Installation Process
Pre-Installation Checks
We began by assessing the incoming supply and confirming the maximum demand of the property. We confirmed the earthing arrangement and ensured the existing installation could safely handle the additional load of a 32A EV charger.
Circuit Routing & Protection
A new dedicated circuit was installed from the consumer unit to the charger location. We fitted a dedicated 40A Type A RCBO alongside surge protection to ensure full compliance with the 18th Edition Wiring Regulations (BS 7671).
Hypervolt Unit Mounting
The Hypervolt Home Pro unit was securely mounted to the exterior brickwork. We used UV-stable black conduit to protect the final cable run, keeping the installation exceptionally neat and weather-resistant. The unit was leveled perfectly and secured with anti-tamper fixings.
- Hypervolt Home Pro 7.4kW
- 40A Type A RCBO
- Surge Protection Device
- Tethered Type 2 Cable
- Black UV-Stable Conduit
Installation Gallery

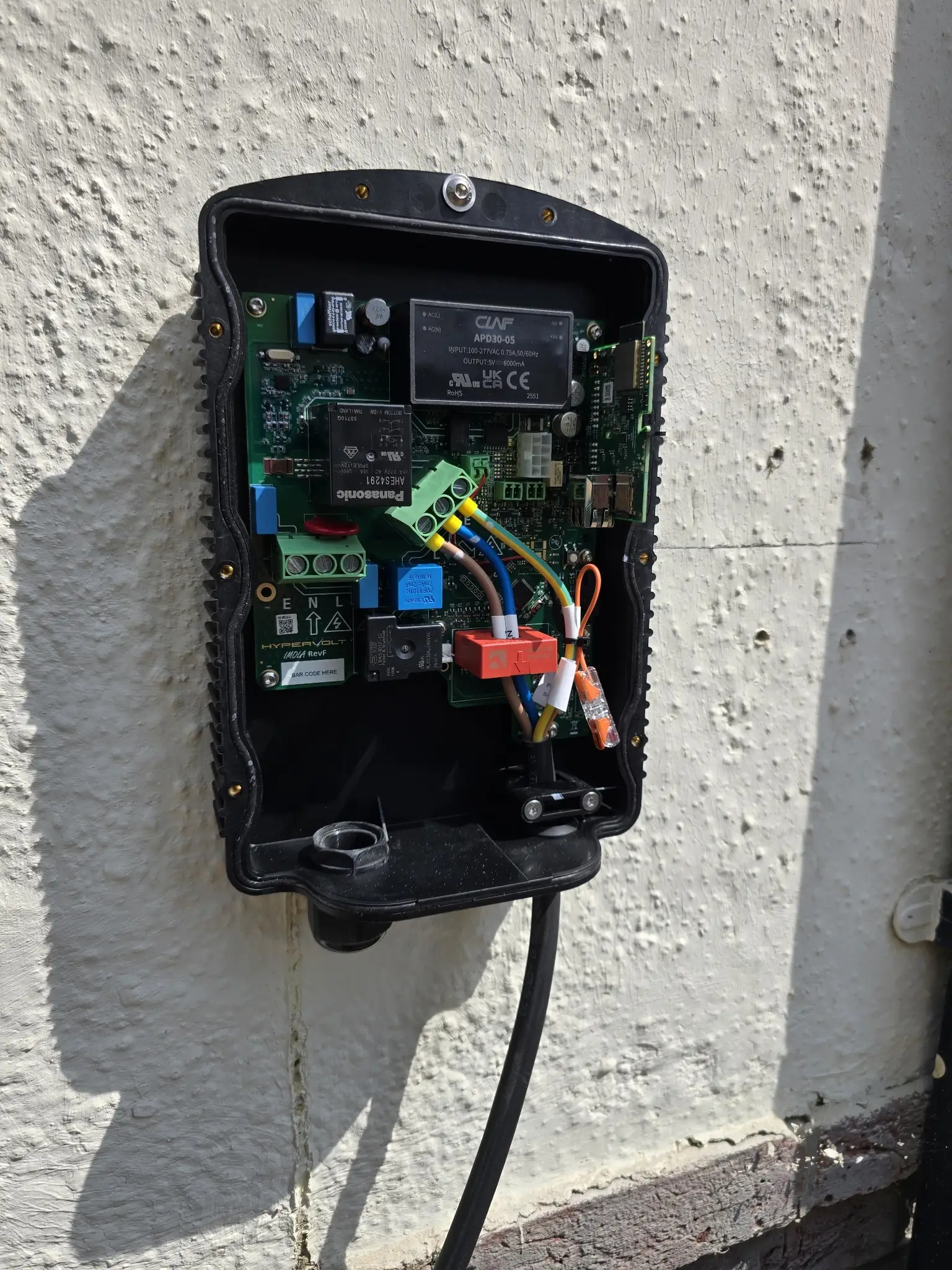

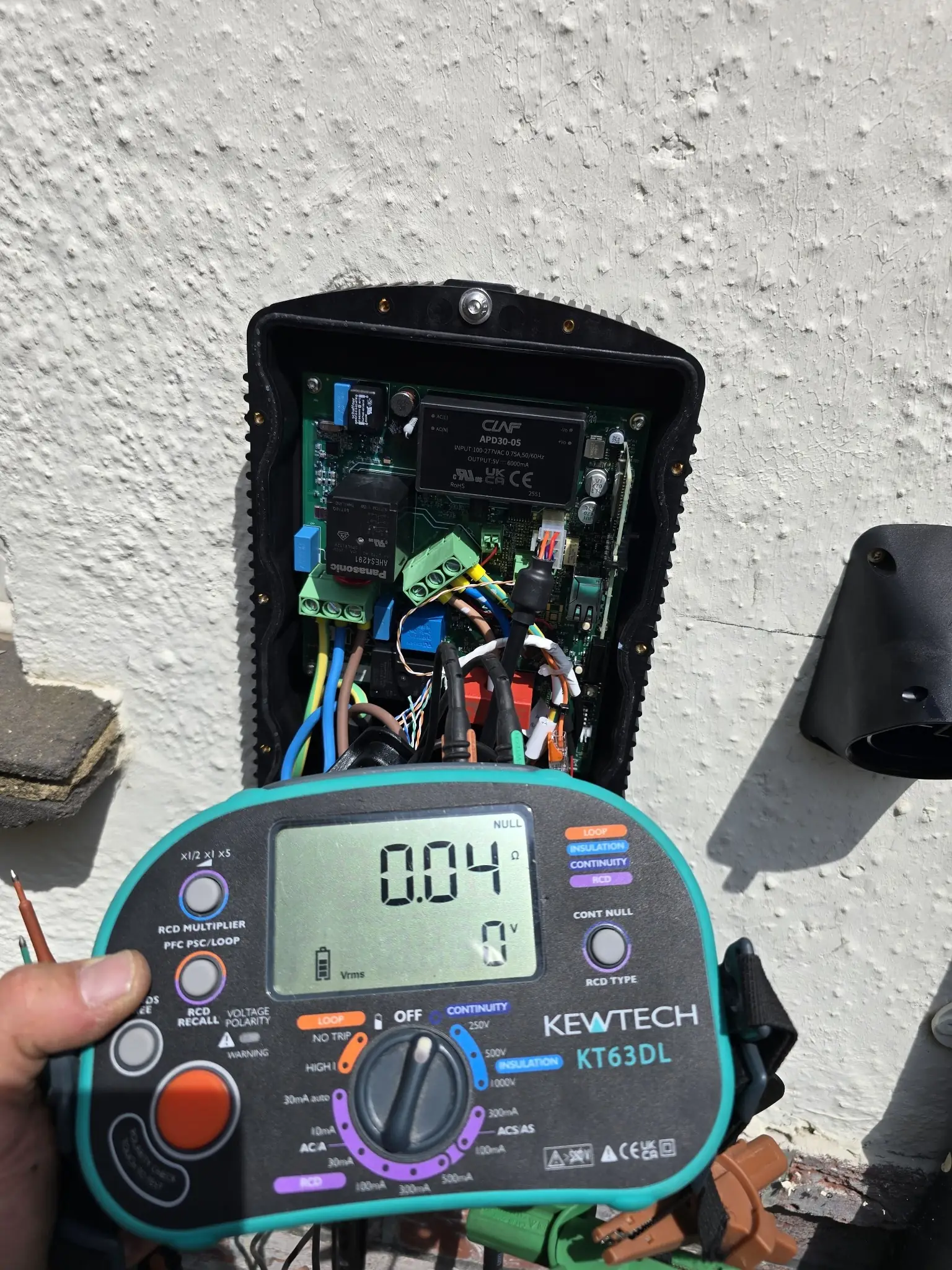

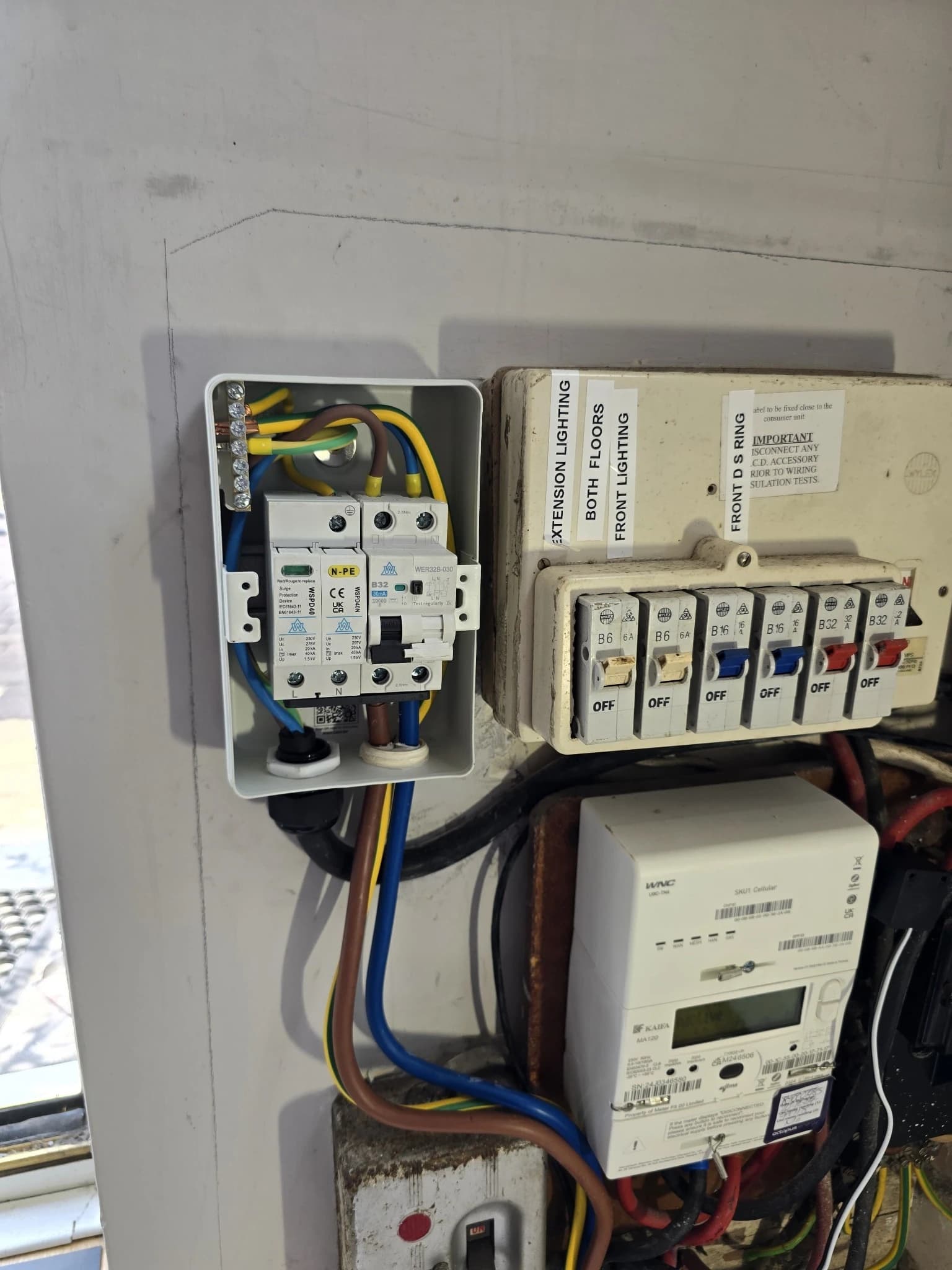

Photographs from the Hypervolt EV charger installation in Christchurch, showing the wall-mounted unit, internal connections, and the dedicated circuit protection.
Result & Impact
The homeowner now has a safe, convenient and properly protected home EV charging point in Christchurch.
By installing a dedicated protective enclosure, we were able to work with the property’s existing electrical arrangement while still providing the RCBO protection, surge protection and circuit separation required for the charger. The final installation is practical, securely mounted and positioned for straightforward daily use without obstructing the doorway or driveway.
Convenient Home Charging
The homeowner can now connect the vehicle directly beside the driveway rather than relying on public charging stations or a standard domestic socket.
Up to 7.4kW Output
The charger can provide up to 7.4kW on a suitable single-phase supply, subject to the vehicle, property supply and configured charging limit.
Dedicated Protection
A separate 32A RCBO and surge protection device protect the new EV charging circuit independently from the property’s existing circuits.
Tidy Cable Storage
The tethered Type 2 cable wraps around the charger, while the wall holster keeps the connector secure and off the ground.
A neat Hypervolt installation with a dedicated protected circuit, secure cable routing and a practical charger position beside the customer’s driveway.
